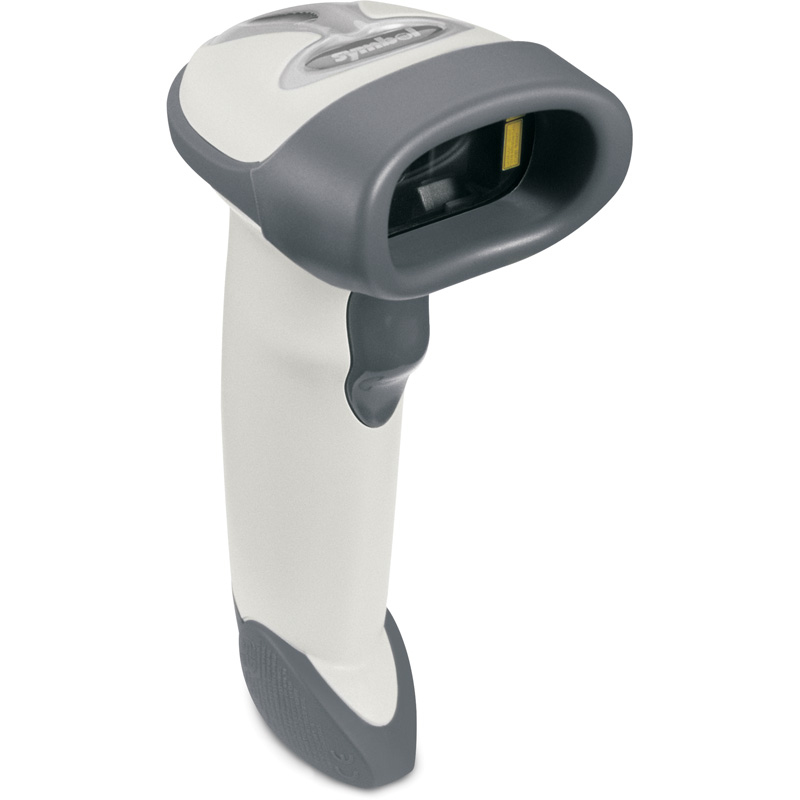

Zebra LS2208 1D SR Handheld Scanner Kit Multi-Interface USB Light Grey LS2208SR20001RUR

Product Code: ZEB01306
Product Unit: Each
Call For Availabilty
Non-Returnable
(0 Reviews reviews) · Be the first to write a Review
  • A patented design with a single circuit board prevents problems that usually occur with several interconnected boards and thus eliminates one of the most frequent causes of failure. Furthermore, the scanner features a liquid polymer scan element that offers inherent impact resistance and guarantees reliable operation
  • Colour: Light Grey
  • The LS2208 was designed for daily continuous operation under professional conditions and has successfully passed drop tests from 1.5 m height on concrete surfaces
  • Durable, impact resistant, scratch resistant design for reliable operation
  • More than a hundred scans per second and a large field of view for optimum scan cycles
  • 1D Multi interface handheld scanner
  • Plug & Play capabilities with upgrade functionality for future interface generations
  • Compatible with most computer and POS systems and industrial, medical equipment
  • Not affected by direct sunlight or artificial lighting which prevents read errors
  • Ergonomic and easy to use pistol grip and trigger design

Product Details

General Information

Colour Light Grey
Sensor type Laser
Tilt reading angle -30 - 30°
Pitch reading angle -65 - 65°
Yaw reading angle -60 - 60°
Decoding standards UPC/EAN UPC/EAN + Supplementals UCC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2/5 Discrete 2/5 Code 93 MSI Code 11 IATA GS1 DataBar Chinese 2/5
Scan speed 100 sec/page
Standard interfaces USB
Product colour White
Input voltage 5 V
Power consumption 130 mA
Weight 146 g
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Harmonized System (HS) code 84716070
Dimensions (WxDxH) 63 x 84 x 152 mm
Safety UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
Light source 650nm
Electromagnetic emissions FCC Part 15 Class B, ICES 003 Class B

Product Information

Brand Zebra Technologies
Type Thermal Rolls

Description

The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range —from near-contact to 17 inches — makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems Durable, single-board construction Meets stringent 5-ft drop tests. Scratch-resistant tempered glass exit window Is designed for continuous use. Accurate first-time capture of 1D bar codes Increased productivity, resulting in shorter check-out lines and better customer service. Wide working range Delivers optimal performance from contact to 17 in (43 cm). Multiple on-board interfaces Simplify installation and integration and ensures future compatibility. Plug-and-play, with universal cable Means rapid deployment, with a single cable connecting to any computing environment. Intuitive design Minimizes setup and training time. Ergonomic, lightweight design Reduces user fatigue with sleek, balanced form for maximum comfort and productivity. Hands-free Intellistand Enables presentation scanning and easy switching between hands-free and handheld modes. Advanced Data Formatting (ADF) Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software.
